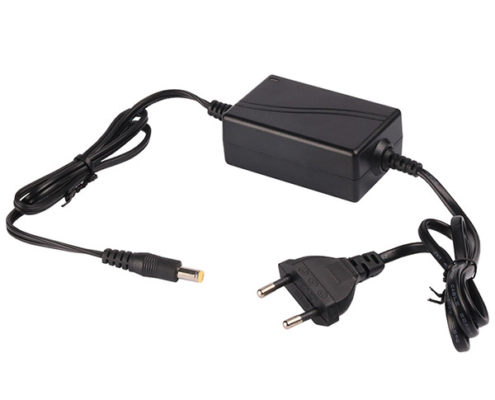

This AC to DC 5V 10W power supply adapter is widely used for various application, it’s designed with high quality and stable performance below features for your quick checking:
| Model No. | XED-2005SC2 | XED-2005SC6 | |
| OUTPUT | DC voltage | 5V | 5V |
| Rated current | 2A | 2A | |
| Current range | 2.2-2.8A | 2.2-2.8A | |
| Rated power | 10W | 10W | |
| Ripple & Noise | <120mV | <120mV | |
| Voltage adjustment range | 4.75-5.25V | 4.75-5.25V | |
| Voltage Accuracy | ±5% | ±5% | |
| Linear adjustment rate | ±1% | ±1% | |
| Load adjustment rate | ±5% | ±5% | |
| INPUT | Voltage range | 100-240V | 100-240V |
| AC Plug | USA plug | EU Plug | |
| Frequency range | 50/60Hz | 50/60Hz | |
| Efficiency | 81% | 81% | |
| Surge current | 2KV | 2KV | |
| Leakage current | 0.25mA | 0.25mA | |
| PROTECTION | Over load | 105%-150% | 105%-150% |
| Over voltage | 7.5V | 7.5V | |
| ENVIRONMENT | Working temperature | 0-40℃ | 0-40℃ |
| Storage temperature and humidity | -40℃~+70℃ | -40℃~+70℃ | |
| Safety regulation and electromagnetic compatibility | Safety regulations | NA | NA |
| Insulation impedance | >100MΩ | >100MΩ | |
| Withstand voltage | 3KV | 3KV | |
| Electromagnetic interference | NA | NA | |
| Others | MTBF | 50000Hours | 50000Hours |
| Dimensions | 84*45*28.5 mm | 84*45*28.5 mm | |
