• Desktop Power Adapter

    .Wide voltage compatibility
    .100% full-load burn in testing
    .Fixed cables & 2pins & 3 pins cable design
    .Safe & stable circuit, low working temperature

power adapter 12w

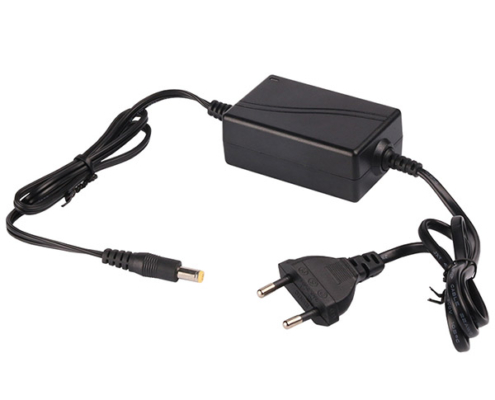

Desktop Power Adapter

This AC to DC 12V 1000mA 12Watt power supply adapter is widely used for various application, it’s designed with high quality and stable performance below features for your quick checking:

  • Wide voltage range AC 100-240V
  • Parameters:DC 12V 1A 12W
  • Options: With AC Plug,optional for US/EU/Brazil Plug.
  • Good for indoor use
  •  ODM & OEM service available
  • Full protection: OVP (Over-voltage protection),OCP (Over-current protection) ,SCP (Short-circuit protection) ,OLP (Over-load protection)







Specifications

Model No. XED-1212SC0 XED-1212SC2 XED-1212SC6
OUTPUT DC voltage 12V 12V 12V
Rated current 1A 1A 1A
Current range 1.2-1.6A 1.2-1.6A 1.2-1.6A
Rated power 12W 12W 12W
Ripple & Noise <120mV <120mV <120mV
Voltage adjustment  range 11.4-12.6V 11.4-12.6V 11.4-12.6V
Voltage Accuracy ±5% ±5% ±5%
Linear adjustment rate ±1% ±1% ±1%
Load adjustment rate ±5% ±5% ±5%
INPUT Voltage range 100-240V 100-240V 100-240V
AC Plug Brazil Plug USA plug EU  Plug
Frequency range 50/60Hz 50/60Hz 50/60Hz
Efficiency 81% 81% 81%
Surge current 2KV 2KV 2KV
Leakage current 0.25mA 0.25mA 0.25mA
PROTECTION Over load 105%-150% 105%-150% 105%-150%
Over voltage 18V 18V 18V
ENVIRONMENT Working temperature 0-40℃ 0-40℃ 0-40℃
Storage temperature and humidity -40℃~+70℃ -40℃~+70℃ -40℃~+70℃
Safety regulation and electromagnetic compatibility Safety regulations NA NA NA
Insulation impedance >100MΩ >100MΩ >100MΩ
Withstand voltage 3KV 3KV 3KV
Electromagnetic interference NA NA NA
Others MTBF 50000Hours 50000Hours 50000Hours
Dimensions 84*45*28.5 mm 84*45*28.5 mm 84*45*28.5 mm
