Multiple Channels Metal Box Power Supply 120w

Multiple Channels Metal Box Power Supply

Wide range AC 100-240V 50/60Hz Input / 12Vdc 10A 120W Output 9 channels / 16 channels outputs metal box centralized power supply

Adjustable output voltage
With 9 / 16 channels outputs
With 3pins AC plug design
Durable white baking finish shell

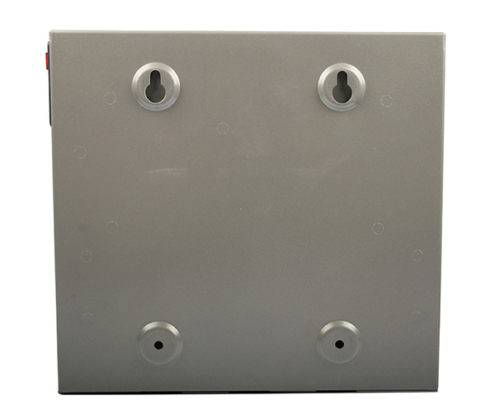

Wall-hanging design, easy installation
Professional outdoor rainproof design
Output current with PTC self recovery fuse
High power factor correction>0.95
With Protection of over current, over voltage, over load, over temperature, short circuit.

Model No.		XED-10A12VX-9L	XED-10A12VX-16L
OUTPUT	DC voltage	12V	12V
	Rated current	10A	10A
	Current range	14-16A	14-16A
	Rated power	120W	120W
	No. of Channels	9 channels	16 channels
	Battery backup	Non-battery backup	Non-battery backup
	Fuse type	PTC fuse	PTC fuse
	Ripple & Noise	120mv	120mv
	Voltage adjustment range	11.4-12.6V	11.4-12.6V
	Voltage Accuracy	±5%	±5%
	Linear adjustment rate	±1%	±1%
	Load adjustment rate	±5%	±5%
INPUT	Voltage range	100-240V	100-240V
	AC plug	3 PINS	3 PINS
	Frequency range	50/60Hz	50/60Hz
	Efficiency	85%	85%
	Surge current	4kV	4kV
	Leakage current	0.25mA	0.25mA
PROTECTION	Over load	105%-150%	105%-150%
PROTECTION	Over voltage	18V	18V
ENVIRONMENT	Working temperature	0-40℃	0-40℃
ENVIRONMENT	Storage temperature and humidity	-40℃~+70℃	-40℃~+70℃
Safety regulation and electromagnetic compatibility	Safety regulations	EN60950-1	EN60950-1
	Insulation impedance	>100MΩ	>100MΩ
	Withstand voltage	1.5kv	1.5kv
	Electromagnetic interference	EN55032	EN55032
Others	MTBF	50000Hours	50000Hours
Others	Dimensions	23721464MM	23721464MM
