Open Frame Power Supply 60W Series 2

Open Frame Power Supply
.Adjustable voltage
.100% full-load burn in testing
.Use CEM-1 high quality materials
. Wide honeycomb design for good heat dissipation

Open Frame Power Supply

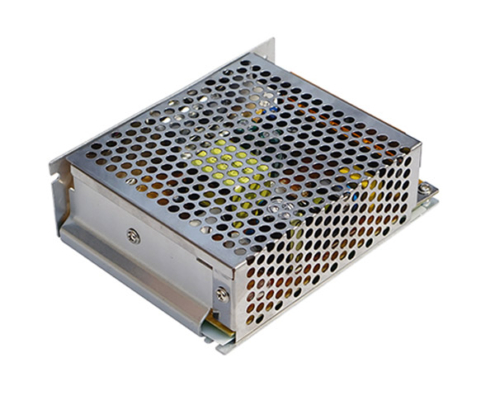

Wide range AC 100V-240V 50/60Hz Input / 12Vdc 5A 60W Output Open Frame Switch Mode Power Supply

Adjustable voltage
Wide range / single range AC input
100% full-load burn in testing
Use CEM-1 high quality materials
Wide honeycomb design for good heat dissipation
With Protection of over current, over voltage, over load, over temperature, short circuit.

Model No.		XED-D60W12VWT	XED-Q60W12VWT
OUTPUT	DC voltage	12V	12V
	Rated current	5A	5A
	Current range	5.5-9A	5.5-9A
	Rated power	60W	60W
	Ripple & Noise	120mv	120mv
	Voltage adjustment range	11.4-13.9V	11.4-13.9V
	Voltage Accuracy	±5%	±5%
	Linear adjustment rate	±1%	±1%
	Load adjustment rate	±5%	±5%
INPUT	Voltage range	180-240V	100-240V
	Frequency range	50Hz	50Hz
	Efficiency	80%	80%
	Surge current	4kV	4kV
	Leakage current	0.25mA	0.25mA
PROTECTION	Over load	105%-150%	105%-150%
PROTECTION	Over voltage	18V	18V
ENVIRONMENT	Working temperature	0-40℃	0-40℃
ENVIRONMENT	Storage temperature and humidity	-40℃~+70℃	-40℃~+70℃
Safety regulation and electromagnetic compatibility	Safety regulations
	Insulation impedance
	Withstand voltage	1.5kv	1.5kv
	Electromagnetic interference
Others	MTBF	50000Hours	50000Hours
Others	Dimensions	1299840MM	1299840MM
